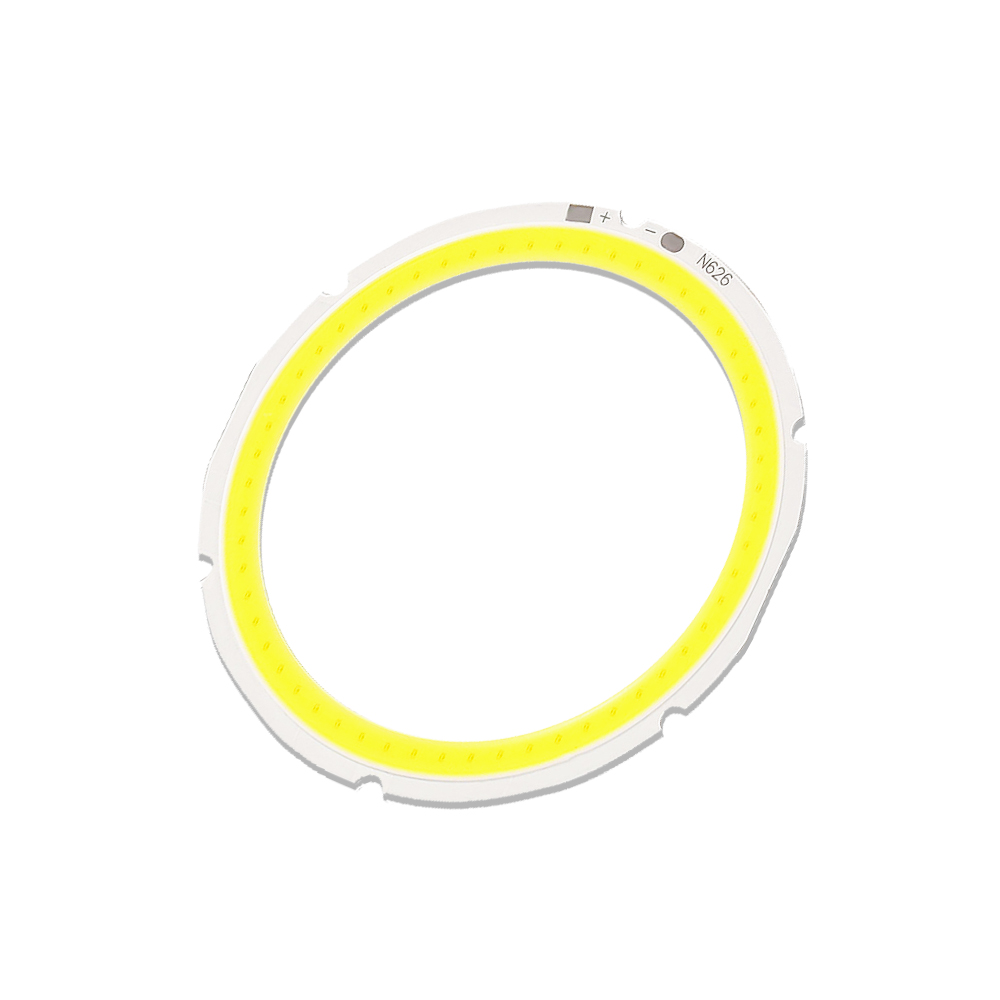

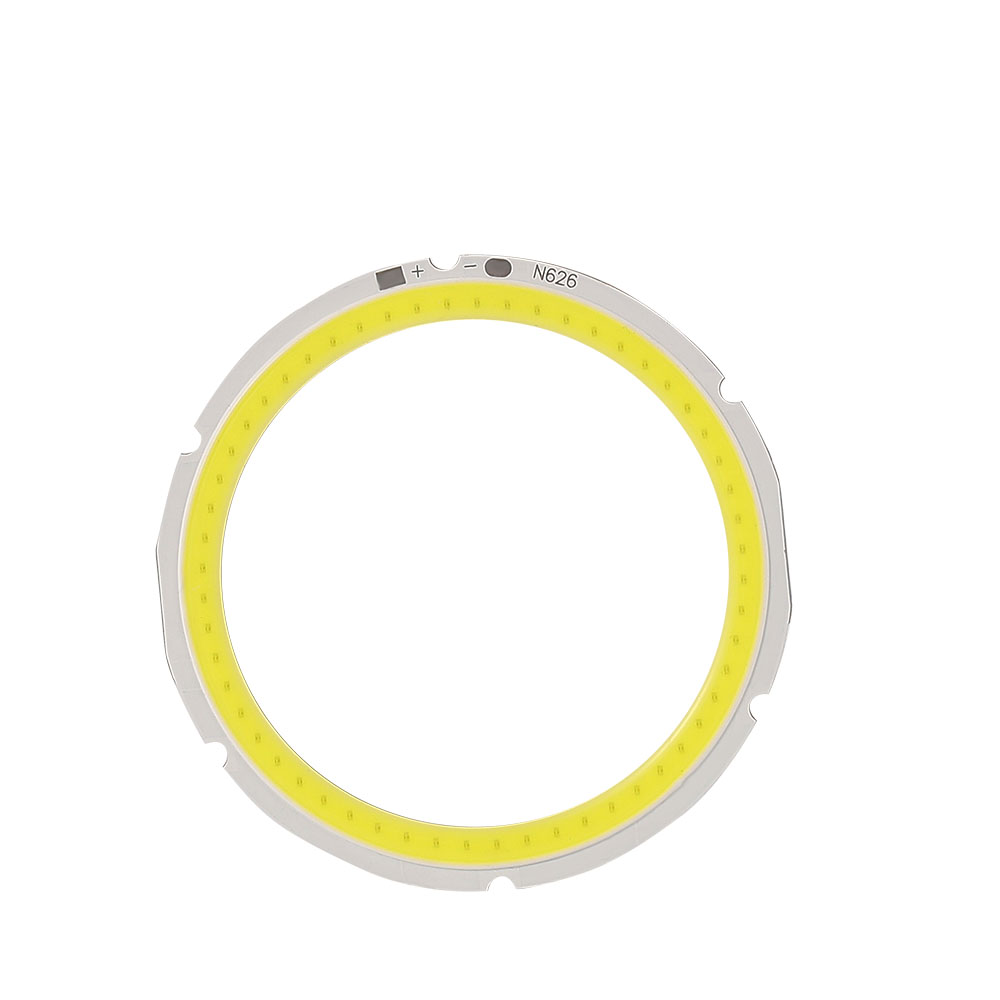

IHY-N626-21V-11W COB for Automotive Headlights
Categories: Automotive COB Series
21V | 500mA | 11W | 6000K | ∮76×1.5mm | Custom Round | Aluminum Substrate |
Key features:
— Specialized angel‑eye COB for automotive headlights and aftermarket lights. Available in customizable colors including white, blue, yellow, ice blue, pink, red, and orange ect.
— Operates at 9V or 12V low voltage with low power consumption, perfectly compatible with automotive electrical systems.
— Standard diameters from 20mm to 120mm in stock; other diameters available upon request.
Product Details
| Model | Rated Power | Rated Voltage | Rated current | Color/CCT | Substrate Dimensions | Substrate Material |
| N626 | 11W | 21V | 500mA | White | 6000K | ∮76×1.5mm | Aluminum |
- Expertly Engineered for Diverse Applications
Optimized for a wide range of vehicles—including bicycles, motorcycles, cars, E-bikes and EVs—perfect for both retrofitting and original equipment. - Uniform & Glare-Free Illumination
Features a perfectly even beam pattern that eliminates harsh hotspots and ensures comfortable, safe lighting. - Precise Custom Fit & Form Factor
Fully customizable in size and model to achieve seamless integration and a perfect match with original lamp assemblies.
| Customization Parameter | Options & Range |
Customization Process 1. Consult & Specify 2. Design & Quote 3. Payment & Start 4. Sample & Approve 5. Contract & Produce 6. QC & Shipment 7. Deliver & Support 8. Maintain & Improve |
| Substrate Shape | Geometric pattern, Graphics, LOGO, Cylinder, 3D Structures, Custom various regular/irregular shapes | |
| Shape of the Luminous Surface | Geometric pattern, Graphics, LOGO, Cylinder, 3D Structures, Custom various regular/irregular shapes | |
| Size | Any size within 2000mm in length and 600mm in width | |
| Power | 0.5W – 1000W | |
| Voltage | 12V DC – 240V AC | |
| CCT | 2300K – 25000K | |
| Wavelength | 365nm UV – 940nm IR | |
| CRI | 80, 90, 95, 98+ | |
| Substrate Material | Aluminum substrates, fiberglass boards, FPC, glass plates, ceramic plates, sapphire slabs, copper substrates |
|
| IP Rating | IP20, IP65, IP67, IP68 | |
| Integrated Components | Capacitor， Inductor，Solar Cell，Thermistor，Resistor，IC，Terminal | |
| Customize Function | PCBA design, Integrated Driver-on-Board (DOB) Design | |
| Customize Quantity | Support small-batch production | |
| True customization means co-developing the future. We are glad to partner with you to explore and master new, challenging technologies beyond our current portfolio. If detailed specifications are not available, please provide your application requirements, and we will design a customized solution to meet your specific needs. |
||
