IHY-XR02-2V-1W
Categories: DC Module
2V | 500mA | 1W | R / 2700K | 24×24×0.8mm |
Custom Shapes | Aluminum
==================================

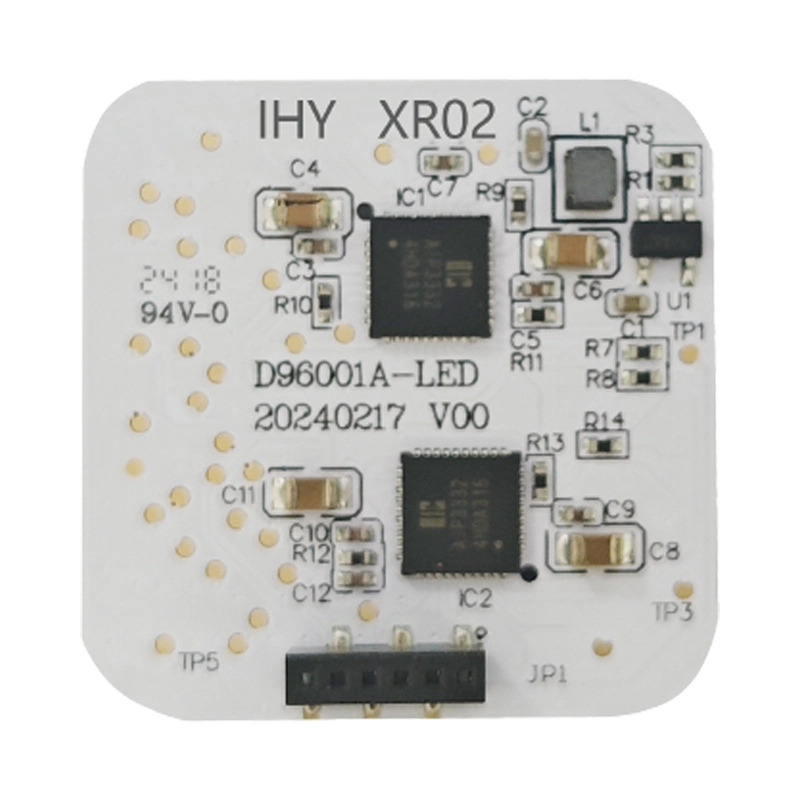

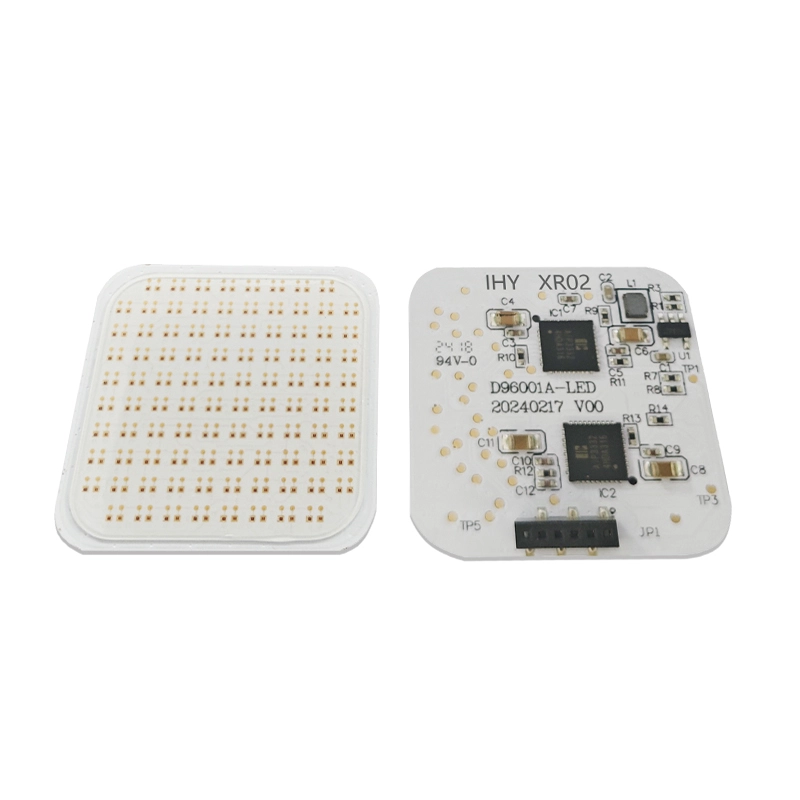

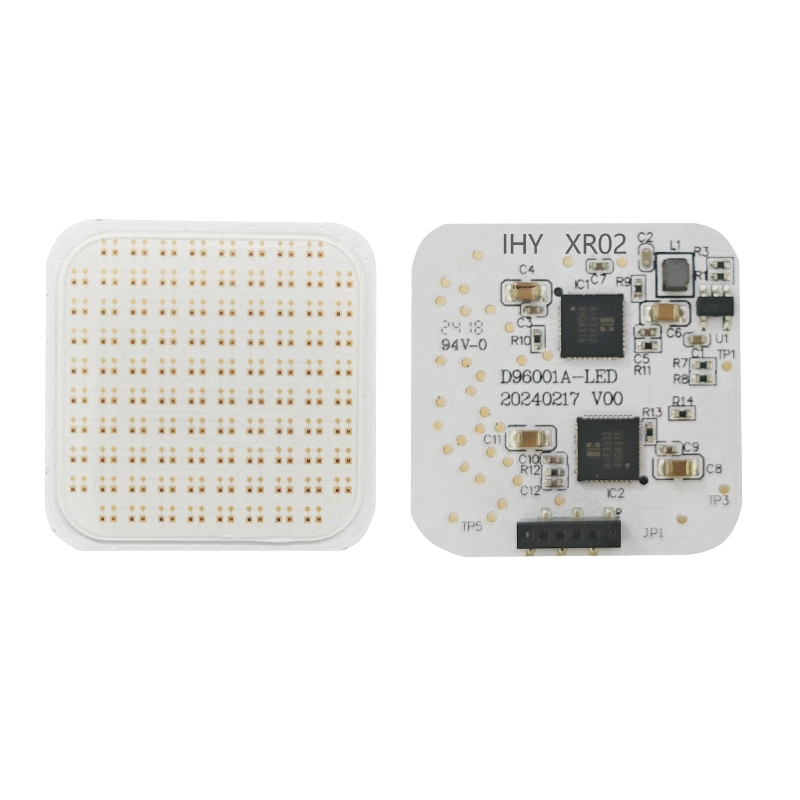

-The COB LED light source is integrated with the control components, terminal blocks, etc. on the same PCB board, making it more convenient to use.
-Mainly used in mobile lighting, industrial lighting, home appliances, consumer electronics and other fields.
-Complete shapes and specifications, professional non-standard customization of various specifications.
Product Details
| Model | Rated Power | Rated Voltage | Rated current | Color/CCT | Substrate Dimensions | Substrate Material |
| IHY-XR02 | 1W | 2V | 500mA | R / 2700K | 24×24×0.8mm | Aluminum |
| Customization Parameter | Options & Range | Customization Process
1. Consult & Specify 2. Design & Quote 3. Payment & Start 4. Sample & Approve 5. Contract & Produce 6. QC & Shipment 7. Deliver & Support 8. Maintain & Improve |
| Substrate Shape | Geometric pattern, Graphics, LOGO, Cylinder, 3D Structures, Custom various regular/irregular shapes | |
| Shape of the Luminous Surface | Geometric pattern, Graphics, LOGO, Cylinder, 3D Structures, Custom various regular/irregular shapes | |
| Size | Any size within 2000mm in length and 600mm in width | |
| Power | 0.5W – 1000W | |
| Voltage | 12V DC – 240V AC | |
| CCT | 2300K – 25000K | |
| Wavelength | 365nm UV – 940nm IR | |
| CRI | 80, 90, 95, 98+ | |
| Substrate Material | Aluminum substrates, fiberglass boards, FPC, glass plates, ceramic plates, sapphire slabs, copper substrates |
|
| IP Rating | IP20, IP65, IP67, IP68 | |
| Integrated Components | Capacitor， Inductor，Solar Cell，Thermistor，Resistor，IC，Terminal | |
| Customize Function | PCBA design, Integrated Driver-on-Board (DOB) Design | |
| Customize Quantity | Support small-batch production | |
| True customization means co-developing the future. We are glad to partner with you to explore and master new, challenging technologies beyond our current portfolio. If detailed specifications are not available, please provide your application requirements, and we will design a customized solution to meet your specific needs. |
||
